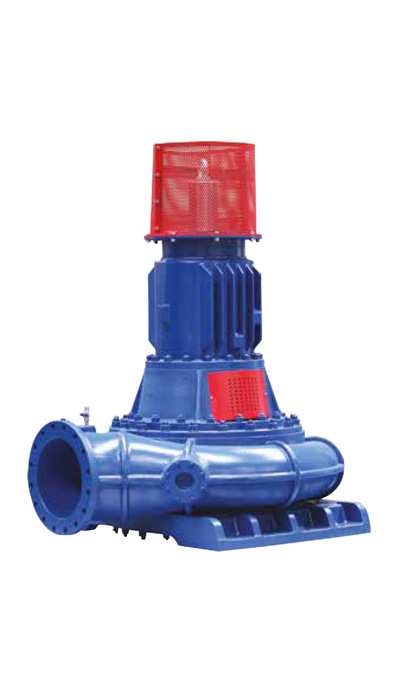

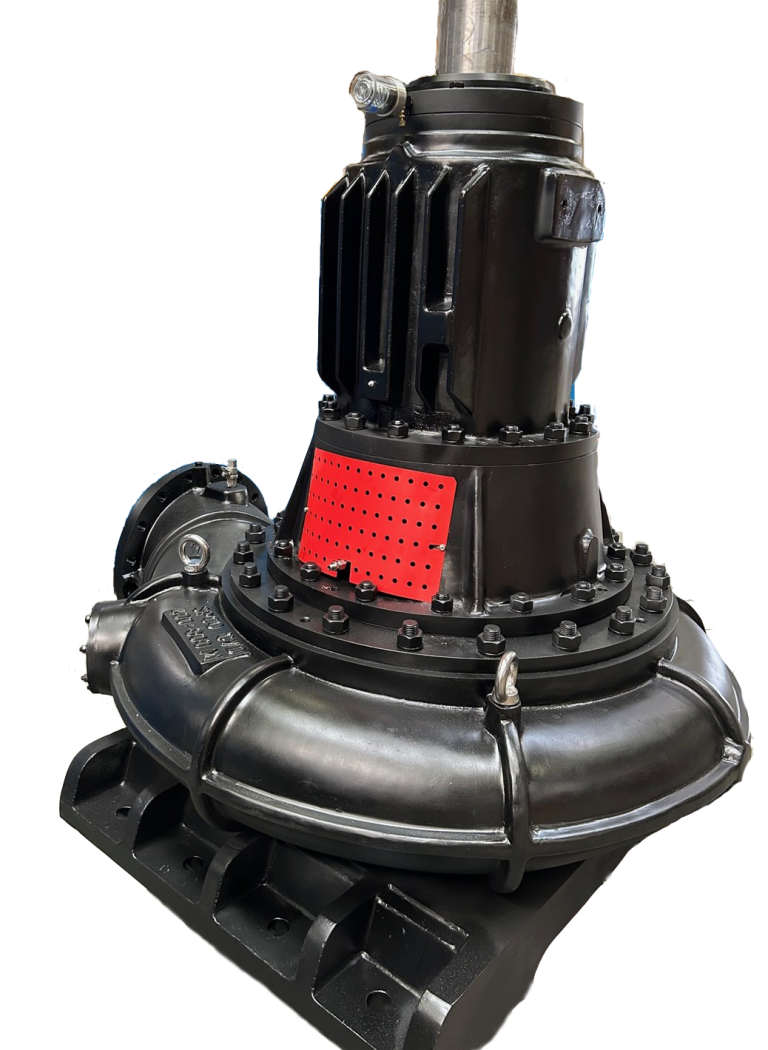

• CVD series pumps consist of centrifugal sewage and waste water pumps. They are used for pumping muddy liquids like sewage and other solid- water mixers, with high viscosity.
• For the vertical column pipe types 1500m and 1000mm long standard pipe used.
The required length can be adjusted between 1000mm and 8000mm by using standard parts.
• Axial thrust force is balanced by vanes located behind the impellers. In column pipe models thrust force impeller and shaft weight are balanced by oil or grease lubricated thrust bearing fitted on base plate.
• Pump impellers are statically and dynamically balanced according to ISO 1940 class 6.3
• Direction of rotation of the pump is clock wise seen from drive end.
• All pumps are tested according to ISO 9906.
• CVD series pumps do not have suction ability, there must be positive pressure on suction side.
